Matte Assist ML
Generates evolving mattes over time using machine learning-based object segmentation and propagation. You can start with any combination of inputs: Mask ML, Roto, EZ Mask, or Input Alpha--whether from an alpha-embedded source or a node that generates alpha.
Mask ML
1 Add a Transform > DOD node to the source, set the boundary around the object to be matted and animate it if needed.
Note: On Linux, animation of the DOD’s size is not supported.
A smaller DOD provides faster performance and better edge quality in the Mask ML and Matte Assist ML nodes.
2 Add a Mask ML node from the Nodes > Key tab and connect it to the DOD node.
The Add tool is selected by default.

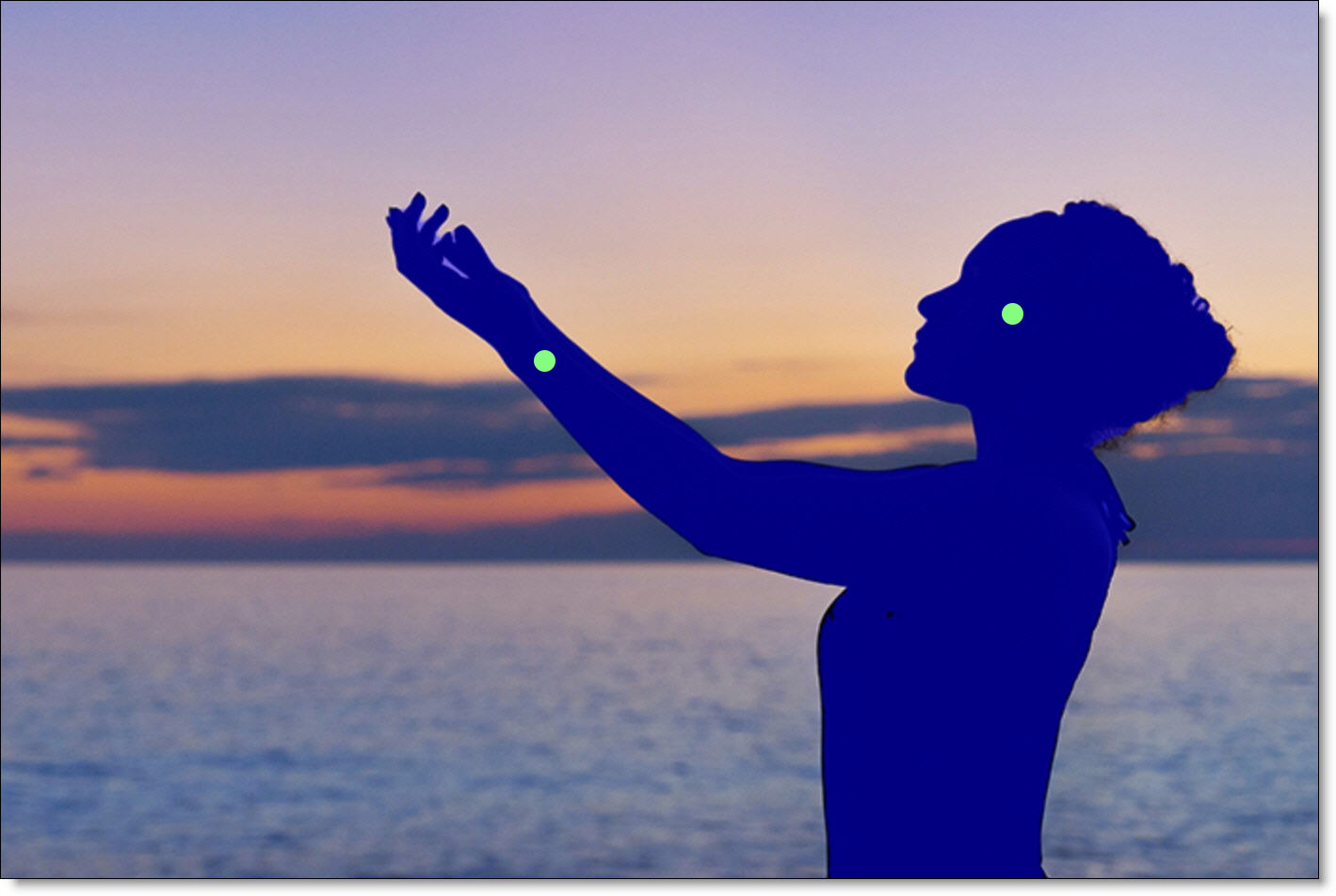

3 Click within the object where you want to create a mask.
With each click, a green point appears, a mask is generated, an alpha overlay appears and an object is automatically created in the Object List.
4 Add additional points as needed.
5 If you see areas of alpha outside of the selected object, right-click or select the Subtract tool and click on those areas.
To mask an object without using the Add and Subtract tools, use the Rectangle tool.
6 Select the Rectangle tool and drag out a box around the object you want to mask.
7 Connect the Mask ML output into the Matte Assist ML input.
8 In the Matte Assist ML node, make sure the Mask Source is set to Input Alpha.
9 Play the sequence to generate the matte.
If the matte is not accurate enough, create additional Mask ML keyframes.
10 Select the Mask ML node and create keyframes at frames where the matte was not accurate enough.
11 To take advantage of the keyframes, connect the Mask ML Data output into the Matte Assist ML Data input.
12 Set the Matte Assist ML > Mask Source to Cryptomatte.
The Cryptomatte option not only transfers keyframe data, but treats each Mask ML object as an independent entity, tracking them separately.
13 Play the sequence again to generate the revised matte using the additional keyframes.

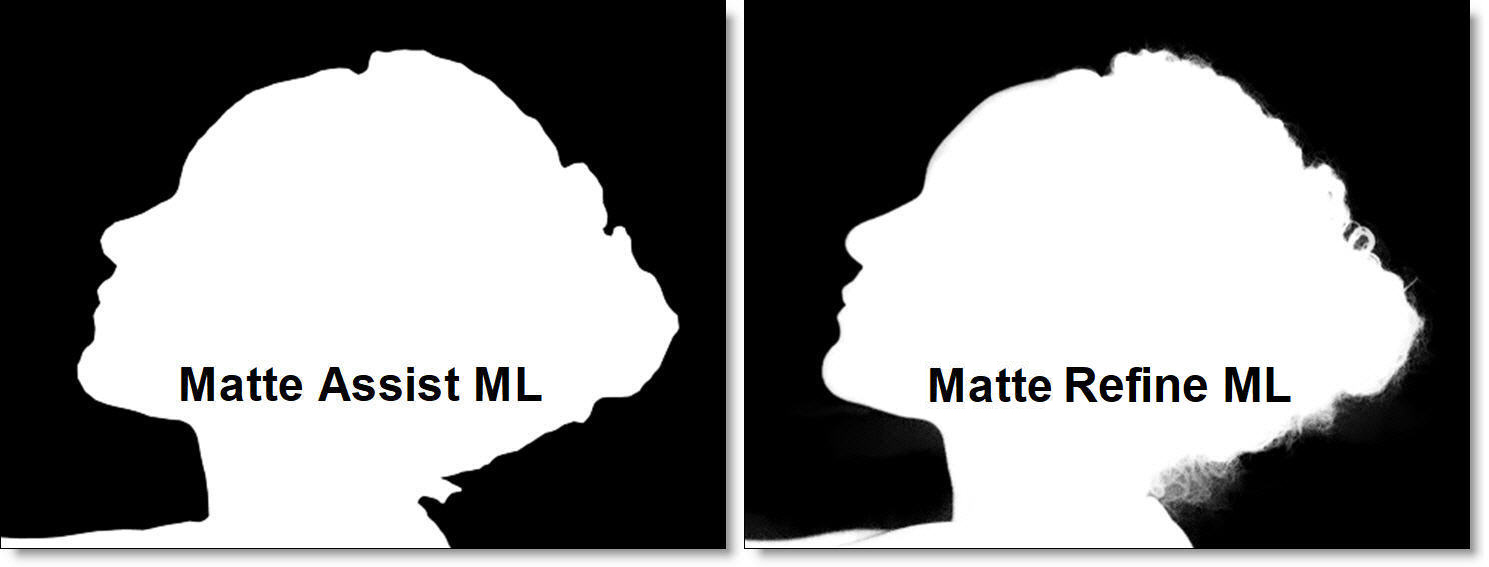

Matte Assist ML generates a binary matte. To create a more natural edge with partial opacity, you can use Matte Assist ML in conjunction with Matte Refine ML.
14 Add a Matte Refine ML node after Matte Assist ML.
Matte Refine ML produces fine hair detail with more natural edges.
Roto
1 Add a Roto node and create a shape around the object where you want to generate a matte. To start with, there only needs to be one keyframe.
Note: Each top level item (shape or layer) in the Object List is considered a separate object. For best performance when using multiple shapes for one object, place the shapes within a layer.
2 Add a Transform > DOD node between the source and Roto node, set the boundary around the object to be matted and animate it if needed.
Note: On Linux, animation of the DOD’s size is not supported.
A smaller DOD provides faster performance and better matte edge quality in the Matte Assist ML node.

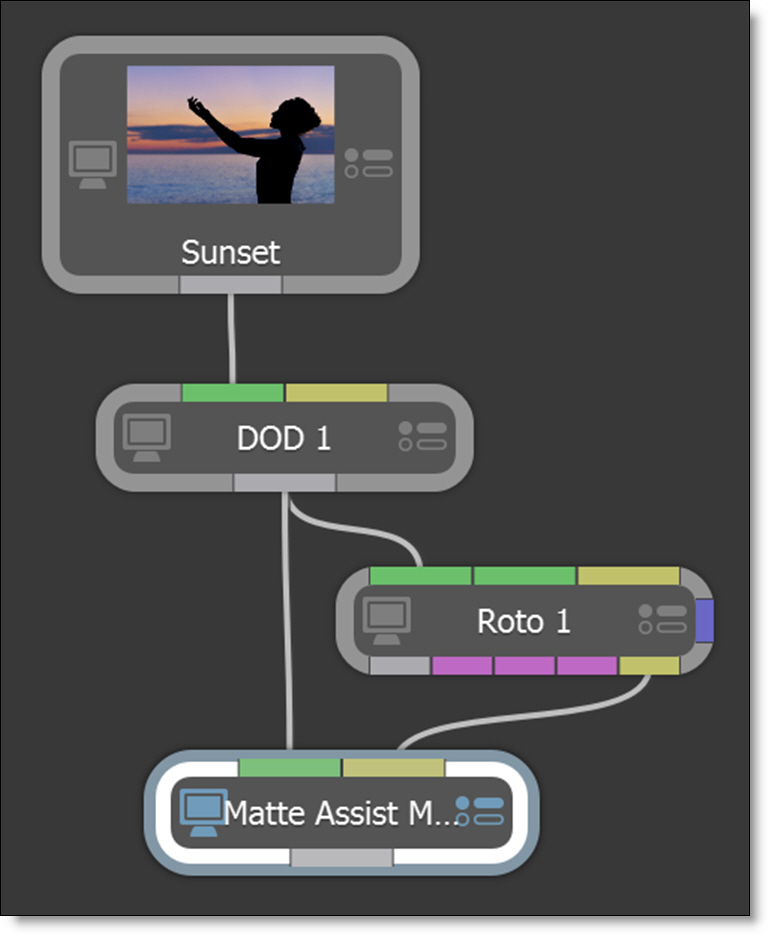

3 Add a Matte Assist ML node from the Nodes > Key tab, connect the DOD output into the Matte Assist ML input and the Roto node’s Data output into the Matte Assist ML Data input.
4 In the Matte Assist ML node, set the Mask Source to Roto.
Setting the Mask Source to Roto generates a matte throughout the sequence using Roto > Object (Shapes, Layers, Trackers) keyframes when connected to the Data input port.
5 Play the sequence to generate the matte.
6 If the matte is not accurate enough, go to the frames where it is not correct and create more shape keyframes.
7 Play the sequence again to generate the revised matte.
By default, the Matte Propagation > Auto mode starts matte propagation with the first keyframe. You may get a better result when using Custom mode and defining a particular frame.
8 If necessary, change Matte Propagation > Auto to Custom and set the Propagation Start Frame.
Matte Assist ML generates a binary matte. To create a more natural edge with partial opacity, you can use Matte Assist ML in conjunction with Matte Refine ML.

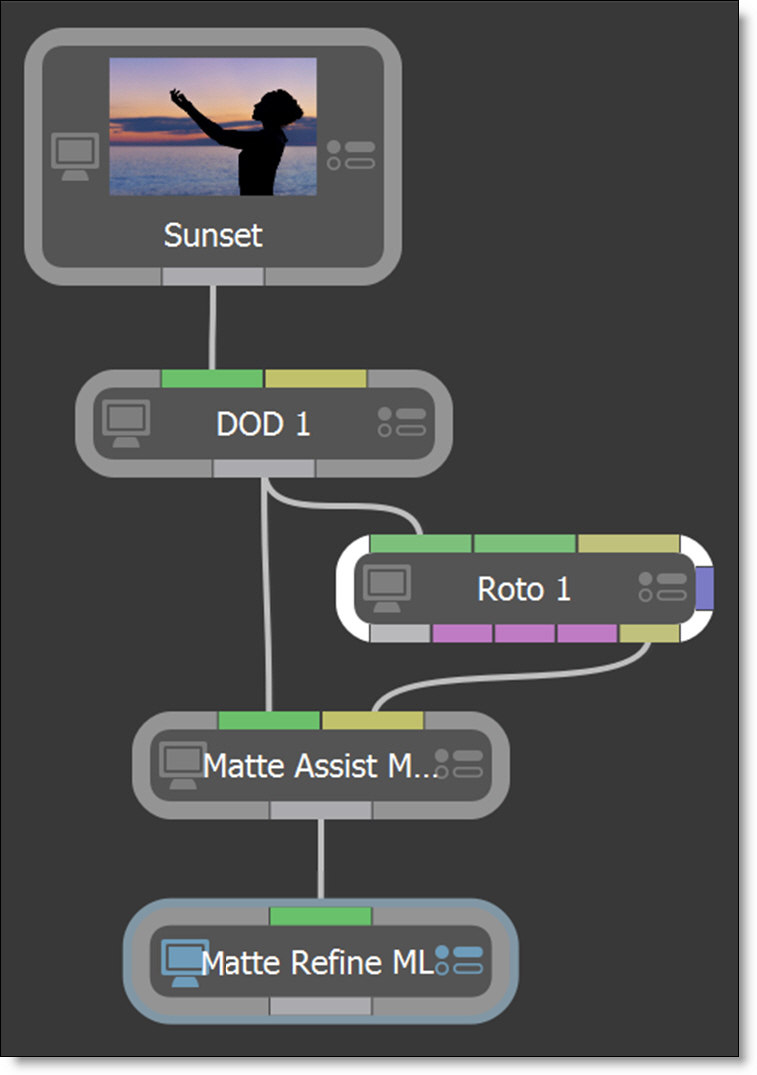

9 Add a Matte Refine ML node after Matte Assist ML.
Matte Refine ML produces fine hair detail with more natural edges.
EZ Mask
1 Connect an image into an EZ Mask node.
The Foreground brush is selected by default.

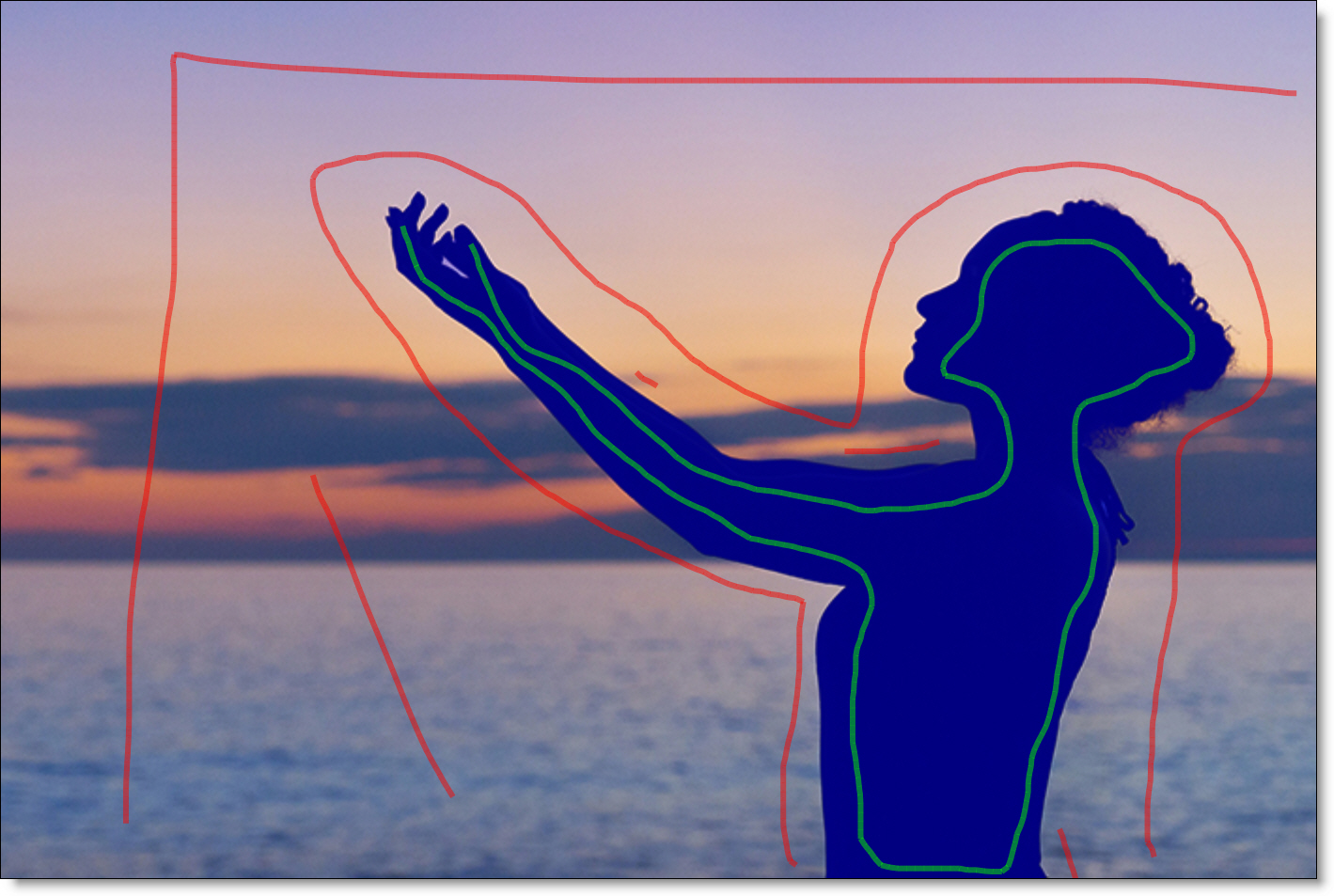

2 Go to the first frame of the sequence and with the left mouse button, click and drag green foreground strokes inside the area where you want to create a matte.
3 Next, select the Background brush and draw a stroke around both the outer edge of the object and the rest of the background. You can also draw background strokes by right-clicking and dragging.
As you finish drawing background strokes, a matte is generated.
4 Press the A key to view the alpha overlayed on the image.
5 Add additional foreground and background strokes as needed to refine the matte.
6 Add a Transform > DOD node between the source and EZ Mask node, set the boundary around the object to be matted and animate it if needed.
Note: On Linux, animation of the DOD’s size is not supported.
A smaller DOD provides faster performance and better matte edge quality in the Matte Assist ML node.
7 Connect the EZ Mask output into the Matte Assist ML input.
8 In the Matte Assist ML node, make sure the Mask Source is set to Input Alpha.
9 Play the sequence to generate the matte.
If the matte is not accurate enough, create additional EZ Mask keyframes.
10 Select the EZ Mask node and create EZ Mask keyframes at frames where the matte was not accurate enough.
11 To take advantage of the keyframes, connect the EZ Mask Data output into the Matte Assist ML Data input.
12 Set the Matte Assist ML > Reference Frames to Keyframes.
13 Play the sequence again to generate the revised matte using the additional keyframes.
Matte Assist ML generates a binary matte. To create a more natural edge with partial opacity, you can use Matte Assist ML in conjunction with Matte Refine ML.
14 Add a Matte Refine ML node after Matte Assist ML.
Matte Refine ML produces fine hair detail with more natural edges.
Input Alpha
Generates a matte throughout the sequence using single or multiple input alpha reference frames. Input Alpha is meant to be used for matting a single object. For matting multiple objects, use the Matte Assist ML > Mask Source > Roto option.
1 Connect an image with alpha or a node that generates alpha into a Transform > DOD node.
2 Set the DOD boundary around the object to be matted and animate it if needed.
Note: On Linux, animation of the DOD’s size is not supported.
A smaller DOD provides faster performance and better matte edge quality in the Matte Assist ML node.
3 Connect the DOD node into a Matte Assist ML node.
4 Make sure the Mask Source is set to Input Alpha.
5 Set the Reference Frames to Frame and enter the frame you want to propagate the matte from in the Frame field.
6 Play the sequence to generate the matte.
If the matte is not accurate enough, set Reference Frames to Markers and create markers at frames where the matte was not accurate enough.

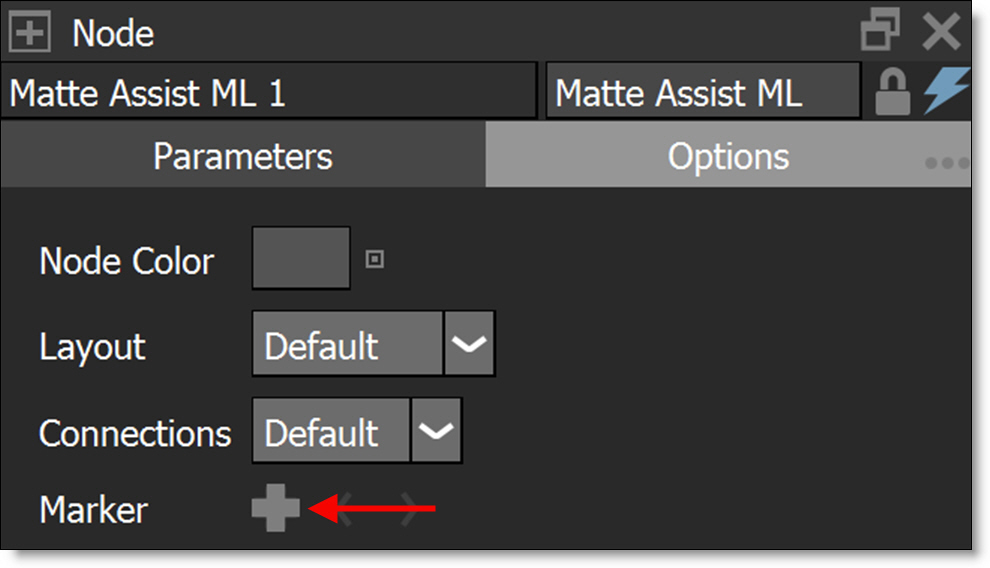

7 To create a marker, click the Marker > + icon in the Node > Options tab.
Matte Assist ML will now use the marker frames as keyframes while generating the matte.
8 Play the sequence again to generate the revised matte.
